Submersible Pump

Price 9000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Submersible Pump Specification

Warranty
1 Year

Usage
Industrial

Power
Electric

Fuel Type
Diesel

Product Type
4 Borewell Submersible Pumpset

Pressure
Medium Pressure

Submersible Pump Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
South India

About Submersible Pump

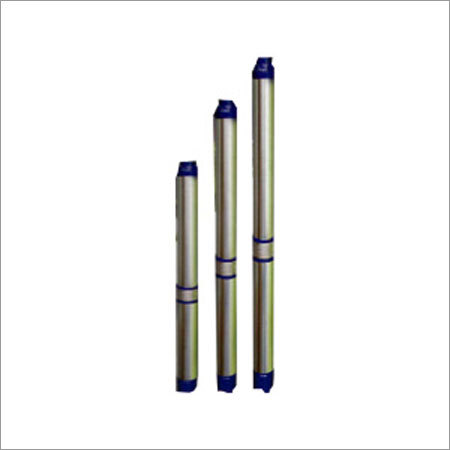

4" Borewell Submersible Pumpset offered by us is ideal to be installed for irrigation, pressure boosting units, pounds & gardens, domestic & municipal water supply, sprinkler system, etc. It is well fitted with high grade impeller and diffusers in order to best efficiency. The stator is made of low wattage loss silicon lamination, and is wound with Grade-A copper wire that ensures higher efficiency. Having lightweight and optimum design, 4" Borewell Submersible Pumpset can easily be installed, dismantled and repaired.

Technical specification

Pump model	hp	STAGE	MAX CURRENT IN AMPS	PIPE SIZE IN MM	Total head in meters discharge in lph
					1000	2200	3200	4200	5100	5500
P4V07	0.75	7	6.0	1			27	23	15	10
P4V10	1.0	10	7.0	1	51	45	37	30	12	11
P4V12	1.0	12	7.5	1		55	45	35	15	10
P4V15	1.0	15	7.5	1		50	48	24
P4V18	1.0	18	7.8	1		55	40	15	5
P4V015A	1.5	15	11.0	1			60	50	35	30
P4V18A	1.5	18	11.2	1			65	48	27	15
P4V21	1.5	21	11.5	1		90	60	20
P4V24	1.5	24	12.0	1	125	105	75	40
P4V20	2.0	20	12.0	1	97	85	70	55
P4V24A	2.0	24	14.0	1	105	90	70	50
P4V30	2.0	30	15.0	1	160	140	105	55
